Transmission Ground

Make sure that the ground terminal bolt is tightened securely.

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

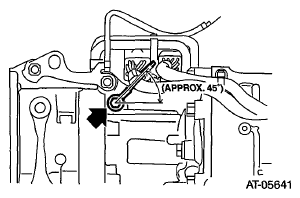

Fig 1: Locating Transmission Ground Terminal Bolt

Courtesy of SUBARU OF AMERICA, INC.
