Converter Case: Assembly

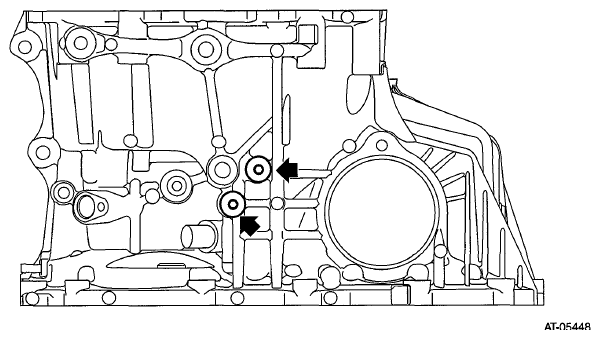

Install the oil drain plug and overflow drain plug.
NOTE: Overflow plug of differential gear oil is temporarily attached.
Install all plugs.
NOTE: Use new O-rings.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 1: Locating Plugs (View 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

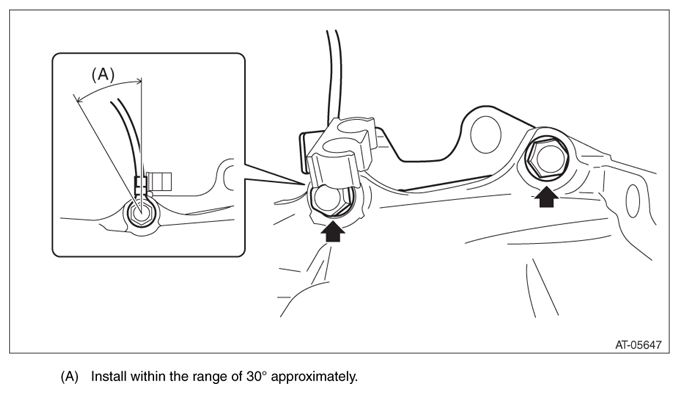

Install the transmission hanger and transmission radio ground cord.
Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)

Fig 2: Locating Transmission Hanger Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
