Forward Clutch Assembly: Adjustment

Measure depth "A" from the ST upper face to the washer catch surface.
ST 398643600 GAUGE

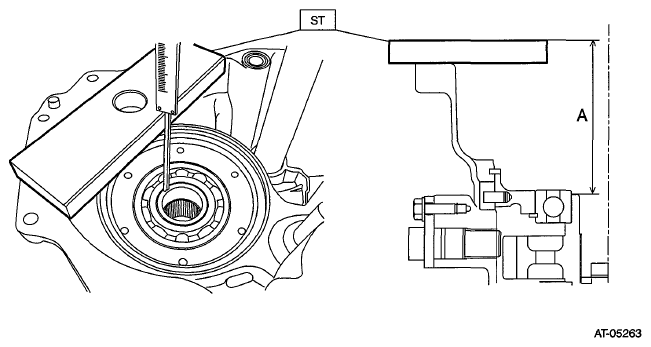

Fig 1: Identifying Depth Between ST Upper Face And Washer Catch Surface
Courtesy of SUBARU OF AMERICA, INC.
Install the forward clutch assembly to intermediate case.
Setting the ST, measure height "B" from the ST upper side to the immediate case mating surface.
ST 499575600 GAUGE

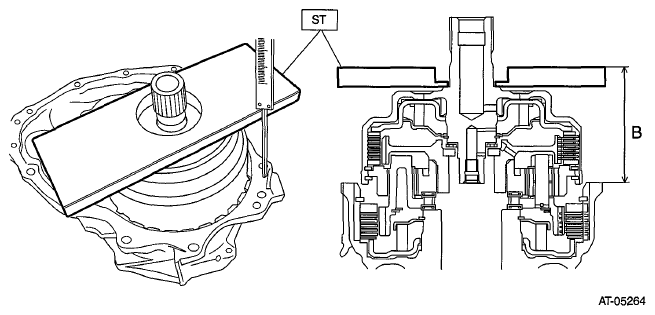

Fig 2: Identifying Height From St Upper Side To Immediate Case Mating Surface With Help Of Gauge
Courtesy of SUBARU OF AMERICA, INC.
Obtain the thickness of washer using the following formula.
Calculation formula:

T (mm) = (A - 15) - (B - 15) - (0.35 - 0.70)

[T (in) = (A - 0.591) - (B - 0.591) - (0.014 - 0.028)]

T: Washer thickness

A: Depth from the ST upper face to the washer catch surface

B: Height from the upper surface of the ST to the mating surface of the intermediate case

15 mm (0.591 in): Thickness of ST

0.35 - 0.70 mm (0.014 - 0.028 in): Clearance

Select the washer matching value "T" obtained from step 4).
