Forward Clutch Assembly: Disassembly

Remove the planetary carrier assembly.

Fig 1: Identifying Planetary Carrier Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust needle bearing.

Fig 2: Identifying Clutch Assembly Without Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.
NOTE: Use marking or labeling to the upper snap ring for measurement of the snap ring thickness when selecting the retaining plate.

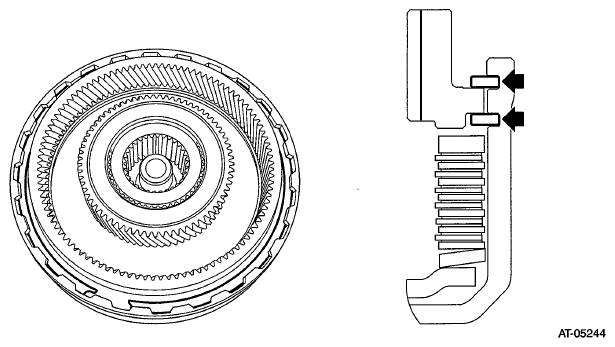

Fig 3: Locating Marks For Measuring Snap Ring Thickness
Courtesy of SUBARU OF AMERICA, INC.
Remove the internal gear.

Fig 4: Identifying Clutch Assembly Without Internal Gear
Courtesy of SUBARU OF AMERICA, INC.
Remove the sun gear.

Fig 5: Identifying Clutch Assembly Without Sun Gear
Courtesy of SUBARU OF AMERICA, INC.
Remove the washer.

Fig 6: Removing Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust needle bearing.

Fig 7: Identifying Clutch Assembly Without Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.

Fig 8: Identifying Clutch Assembly Without Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the retaining plate, drive plate, driven plate and dish plate.

Fig 9: Identifying Clutch Assembly Without Retaining Plate, Drive Plate, Driven Plate And Dish Plate
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the snap ring.
ST 18762AA000 COMPRESSOR SPECIAL TOOL

Fig 10: Identifying Snap Ring With Compressor Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Remove the forward clutch piston seal.

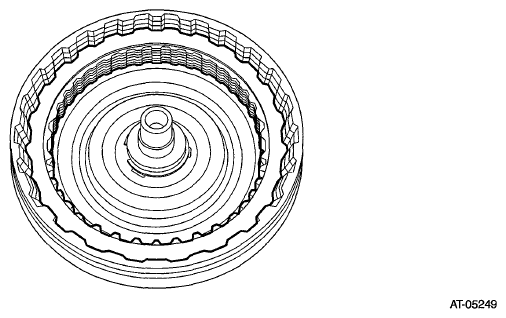

Fig 11: Identifying Clutch Assembly Without Forward Clutch Piston Seal
Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

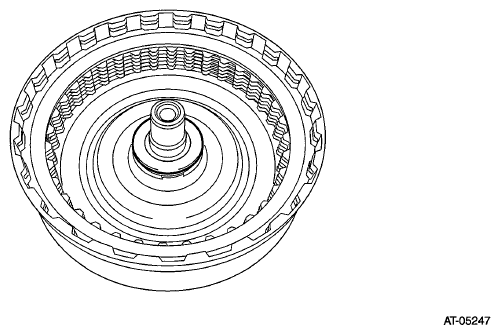

Fig 12: Identifying Clutch Assembly Without Return Spring
Courtesy of SUBARU OF AMERICA, INC.

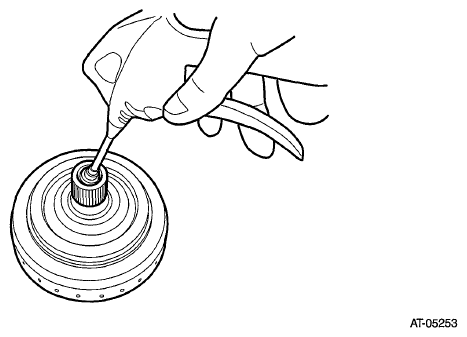

Remove the forward clutch piston by blowing compressed air intermittently from end of forward clutch drum.
