Forward Clutch Assembly: Installation

  1. Select a washer. Refer to , ADJUSTMENT , Forward Clutch Assembly.
  2. Install the selected washer.

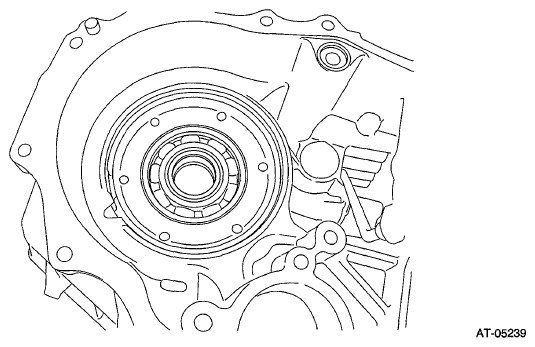

    Fig 1: Identifying Washer (View 2 Of 2)
    G06654568Courtesy of SUBARU OF AMERICA, INC.
  3. Install the forward clutch assembly.

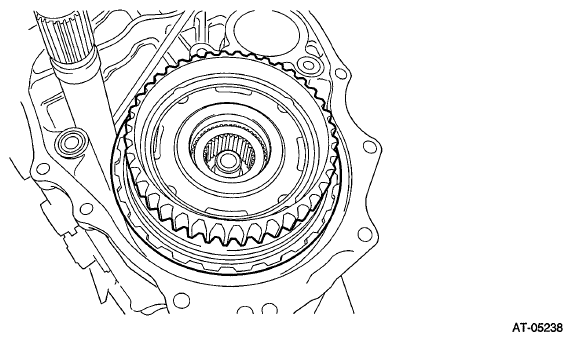

    Fig 2: Identifying Forward Clutch Assembly
    G06654567Courtesy of SUBARU OF AMERICA, INC.
  4. Install the thrust needle bearing.
    NOTE: Install the thrust needle bearing in the correct direction.

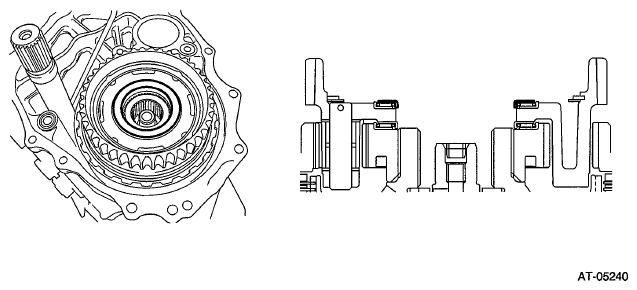

    Fig 3: Identifying Correct Direction Of Installing Thrust Needle Bearing
    G06654571Courtesy of SUBARU OF AMERICA, INC.
  5. Install the intermediate case. Refer to , INSTALLATION , Intermediate Case.
  6. Install the transfer reduction driven gear assembly. Refer to , INSTALLATION , Transfer Reduction Driven Gear.
  7. Install the transfer clutch assembly. Refer to , INSTALLATION , Transfer Clutch.
  8. Install the rear drive shaft. Refer to , INSTALLATION , Rear Drive Shaft.
  9. Install the extension case. Refer to , INSTALLATION , Extension Case.
  10. Install the transmission to vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
