Side Retainer

NOTE: After adjusting the backlash and tooth contact, replace the oil seal and O-ring of side retainer with new parts.

Press-fit the bearing outer race to side retainer.
Using the ST, install the oil seal.
NOTE:
- Use a new oil seal.
- Apply differential oil to the oil seal lip.
- Oil seal has an identification mark (R, L). When installing oil seals, do not confuse the left and right.
ST 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER

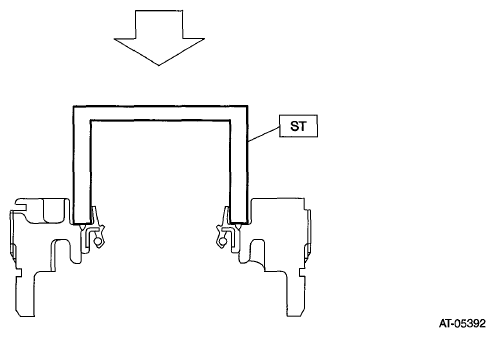

Fig 1: Identifying Side Retainer With Differential Side Oil Seal Installer
Courtesy of SUBARU OF AMERICA, INC.
Install the O-ring.
NOTE: Use new O-rings.

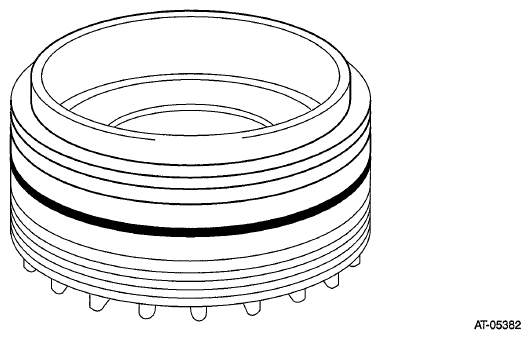

Fig 2: Identifying O-Ring
Courtesy of SUBARU OF AMERICA, INC.
