Front Reduction Drive Gear: Disassembly

Remove the seal ring and O-ring.

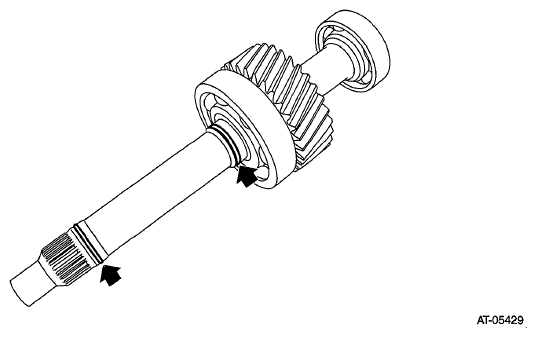

Fig 1: Locating Seal Ring And O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the ball bearing from front reduction drive gear.
ST 899864100 REMOVER

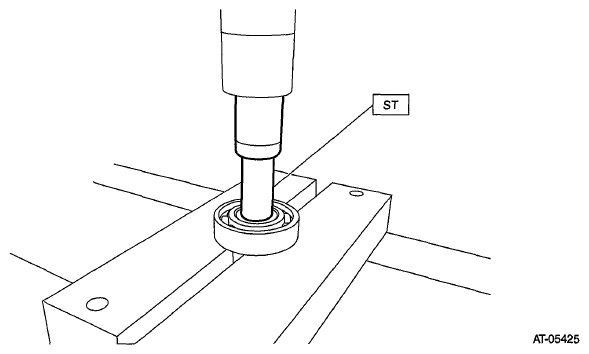

Fig 2: Identifying Ball Bearing With Remover On Front Reduction Drive Gear
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the ball bearing from front reduction drive gear.
ST 498077000 REMOVER

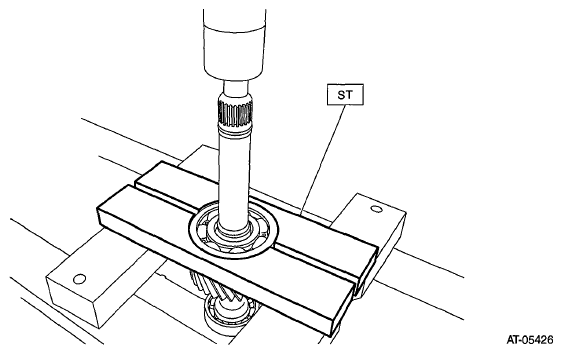

Fig 3: Identifying Ball Bearing With Remover On Front Reduction Drive Gear
Courtesy of SUBARU OF AMERICA, INC.
