Front Reduction Drive Gear: Installation
- Clean the mating surface of converter case cover and converter case.
- Select the shim for front reduction drive gear. Refer to
, ADJUSTMENT , Front Reduction Drive Gear.

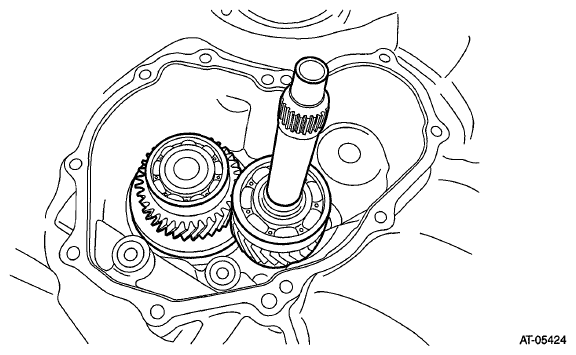

- Install the front reduction drive gear and front reduction driven gear together.
Courtesy of SUBARU OF AMERICA, INC.
- Install the converter case cover. Refer to
, INSTALLATION , Converter Case Cover.
- Install the drive pinion shaft assembly. Refer to
, INSTALLATION , Drive Pinion Shaft Assembly.
- Install the primary pulley, secondary pulley and variator chain. Refer to
, INSTALLATION , Primary Pulley and Secondary Pulley.
- Install the transmission case. Refer to
, INSTALLATION , Transmission Case.
- Install the forward clutch assembly. Refer to
, INSTALLATION , Forward Clutch Assembly.
- Install the intermediate case. Refer to
, INSTALLATION , Intermediate Case.
- Install the transfer reduction driven gear assembly. Refer to
, INSTALLATION , Transfer Reduction Driven Gear.
- Install the transfer clutch assembly. Refer to
, INSTALLATION , Transfer Clutch.
- Install the rear drive shaft. Refer to
, INSTALLATION , Rear Drive Shaft.
- Install the extension case. Refer to
, INSTALLATION , Extension Case.
- Install the primary speed sensor. Refer to
, INSTALLATION , Primary Speed Sensor.
- Install the transmission harness. Refer to
, INSTALLATION , Transmission Harness.
- Install the control valve body and oil pan. Refer to
, INSTALLATION , Control Valve Body.
- Install the air breather hose. Refer to
, INSTALLATION , Air Breather Hose.
- Install the transmission assembly to the vehicle. Refer to
, INSTALLATION , Automatic Transmission Assembly.
