Front Reduction Driven Gear: Disassembly

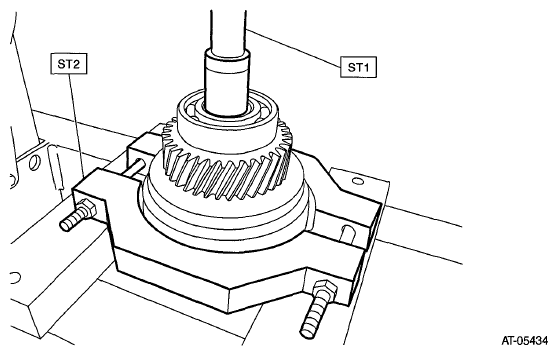

Using the ST, remove the ball bearing, front reduction driven gear and front reduction driven shaft.
ST1 899864100 REMOVER

ST2 18767AA000 BEARING REMOVER

Fig 1: Identifying Ball Bearing, Front Reduction Driven Gear And Front Reduction Driven Shaft With Remover And Bearing Remover
Courtesy of SUBARU OF AMERICA, INC.

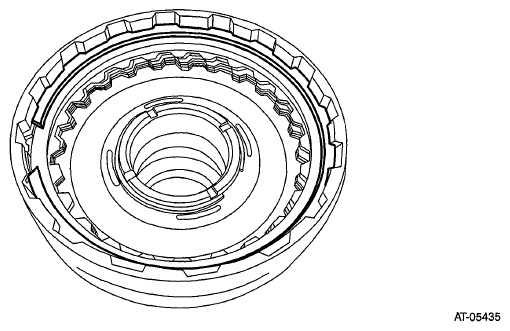

Remove the snap ring.

Fig 2: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

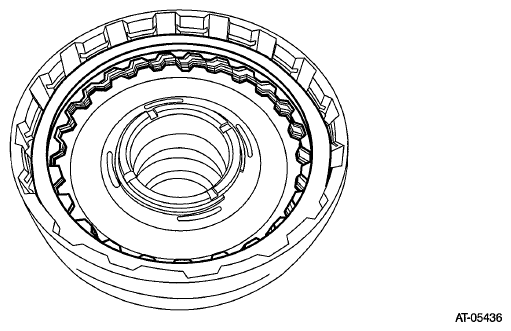

Remove the retaining plate, drive plate, driven plate and dish plate.

Fig 3: Identifying Retaining Plate, Drive Plate, Driven Plate And Dish Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the seal ring from front reduction driven shaft.

Fig 4: Locating Seal Ring On Front Reduction Driven Shaft
Courtesy of SUBARU OF AMERICA, INC.

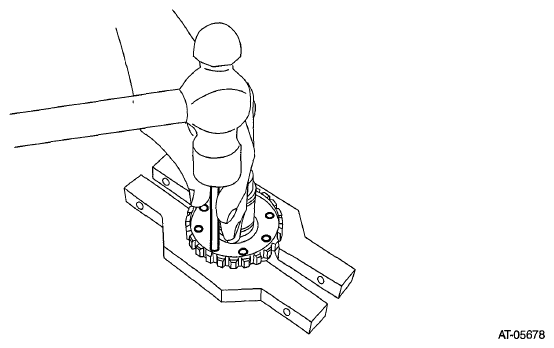

Using the round bar with diameter of 7 mm (0.28 in), tap the entire circumference around the ball bearing outer race a little at a time through the front reduction driven shaft hole, to remove the ball bearing.

Fig 5: Removing Ball Bearing Using Round Bar
Courtesy of SUBARU OF AMERICA, INC.
