Front Reduction Drive Gear And Front Reduction Driven Gear

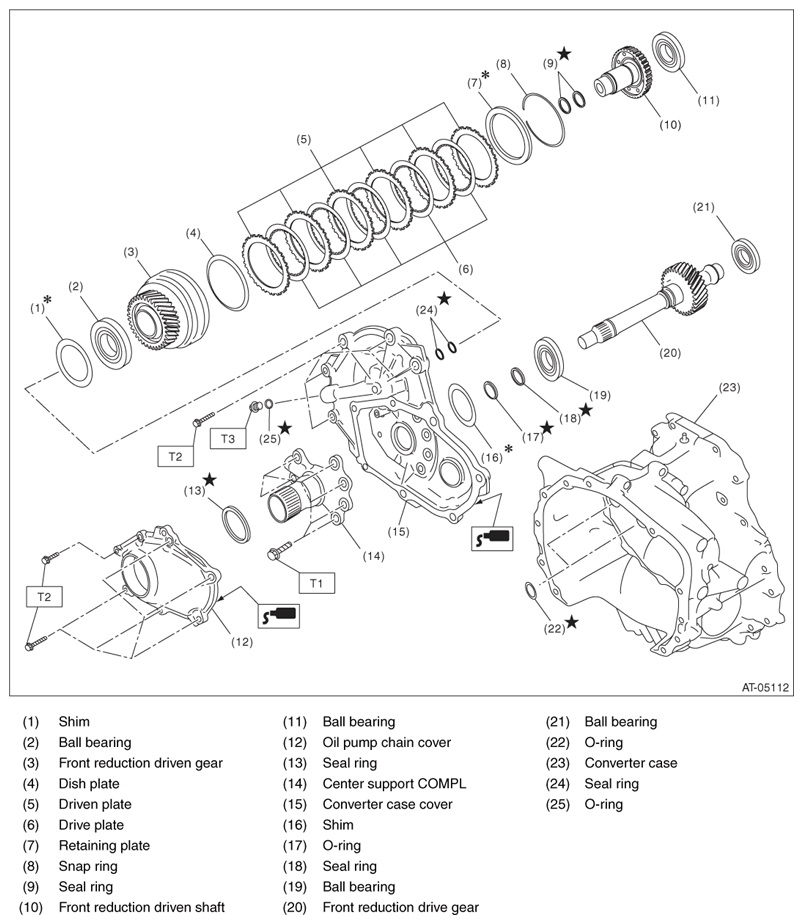

Fig 1: Exploded View Of Front Reduction Drive Gear And Front Reduction Driven Gear

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 21.5 (2.2, 15.9)

T2: 24 (2.4, 17.7)

T3: 25 (2.5, 18.4)
