Primary Pulley, Secondary Pulley And VARIATOR Chain

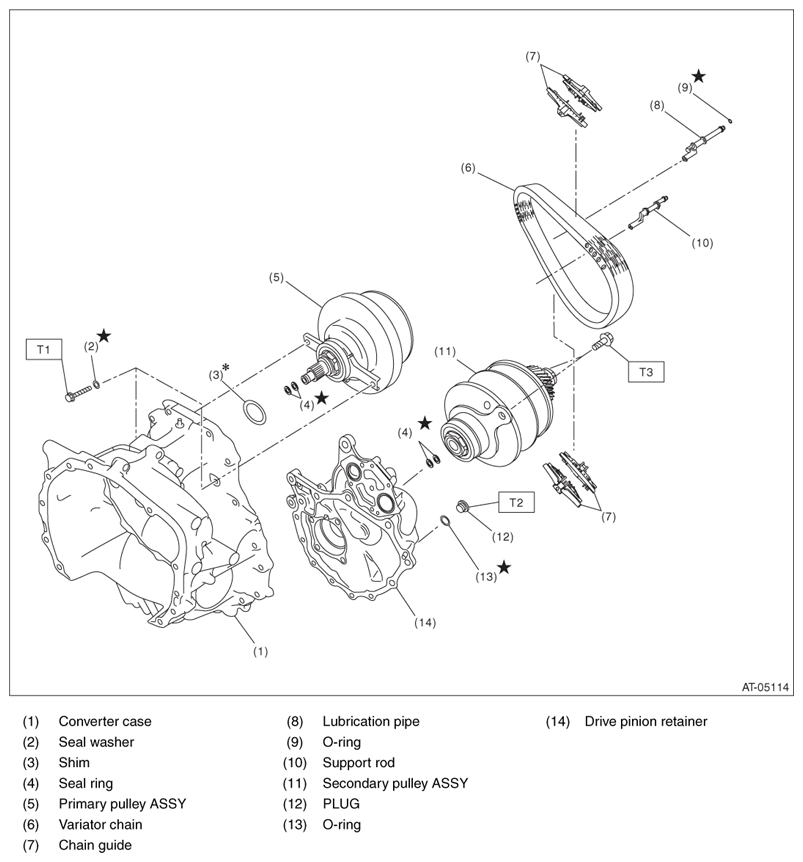

Fig 1: Exploded View Of Primary Pulley, Secondary Pulley And Variator Chain

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 21 (2.1, 15.5)

T2: 25 (2.5, 18.4)

T3: 33 (3.4, 24.3)
