Intermediate Case: Disassembly

  1. Remove the CVTF filler plug.
  2. Remove all plugs from intermediate case.

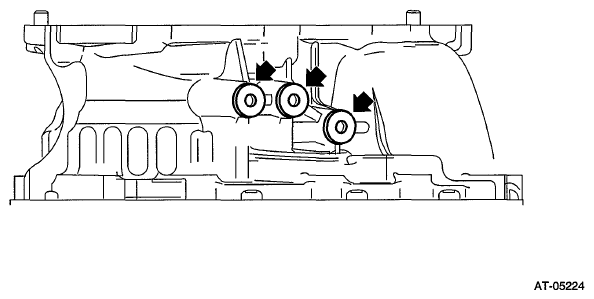

    Fig 1: Identifying CVTF Filler Plug On Intermediate Case (View 1 Of 2)
    G06654549Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the reverse brake assembly. Refer to , DISASSEMBLY , Reverse Brake Assembly.
