Drive Sprocket

  1. Remove the ball bearing using ST.

    ST1 498077600 REMOVER

    ST2 399513600 INSTALLER

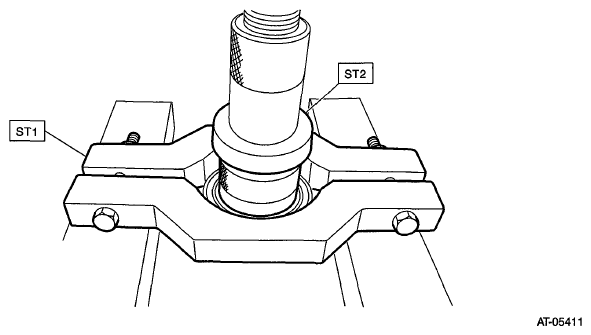

    Fig 1: Identifying Ball Bearing On Drive Sprocket With Remover And Installer
    G06654751Courtesy of SUBARU OF AMERICA, INC.
