Oil Pump Chain: Installation

Clean the mating surface of oil pump chain cover and converter case cover.
Using the ST, install the oil seal.
ST 499755602 PRESS SNAP RING

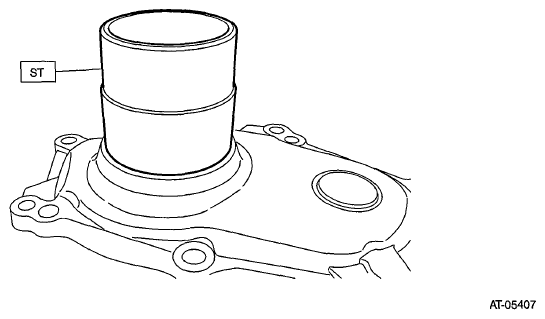

Fig 1: Identifying Oil Pump Chain Cover With Press Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Install the drive sprocket and install the snap ring.

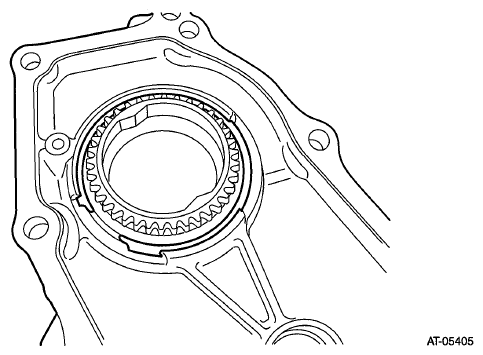

Fig 2: Identifying Drive Sprocket
Courtesy of SUBARU OF AMERICA, INC.
Place the oil pump chain on drive sprocket.
Place the oil pump chain on driven sprocket and install the driven sprocket to oil pump chain cover.

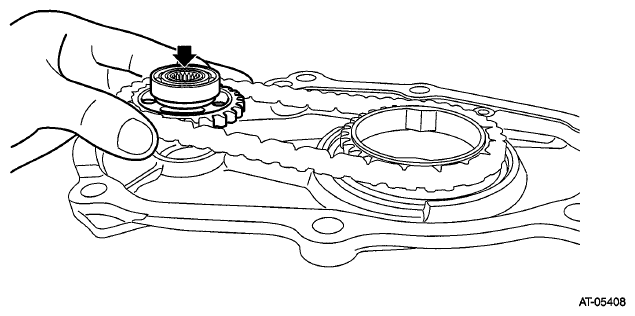

Fig 3: Installing Driven Sprocket To Oil Pump Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the seal ring to center support COMPL.
NOTE:
- Use a new seal ring.
- Apply CVTF to the seal rings.

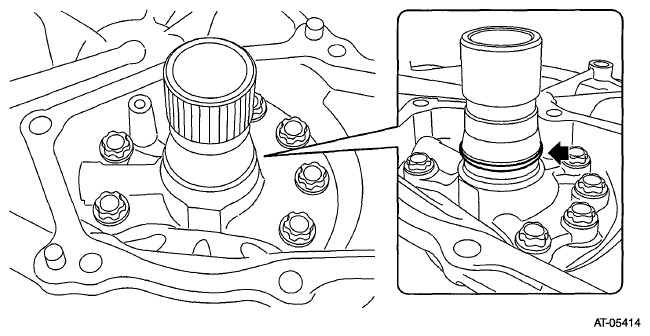

  Fig 4: Locating Seal Ring On Center Support COMPL
  Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket seamlessly to the mating surface of oil pump chain cover.
CAUTION: Do not apply liquid gasket at the arrowed hole.

Liquid gasket:

THREE BOND 1215 (Part No. 004403007) or equivalent

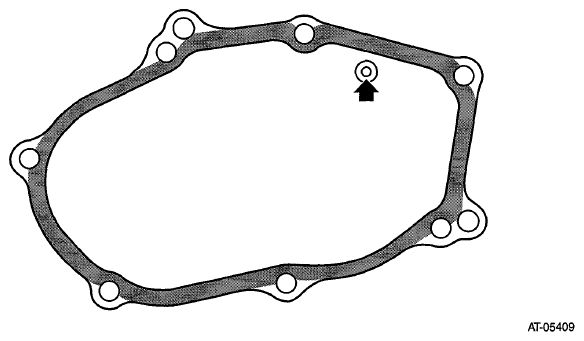

Fig 5: Locating Hole On Which Liquid Gasket Need Not Apply
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pump chain cover.
NOTE: There are two types of bolt.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

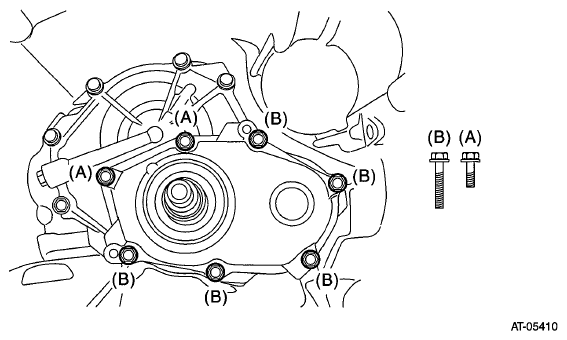

Fig 6: Identifying Oil Pump Chain Cover Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter assembly. Refer to , INSTALLATION , Torque Converter Assembly.
Install the transmission assembly to the vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
