Primary Speed Sensor: Removal

CAUTION: Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.
  1. Remove the air intake boot assembly. Refer to AIR INTAKE BOOT IN(H4SO)-8, REMOVAL, Air Intake Boot.
  2. Remove the harness connector from primary speed sensor.
  3. Remove the primary speed sensor.

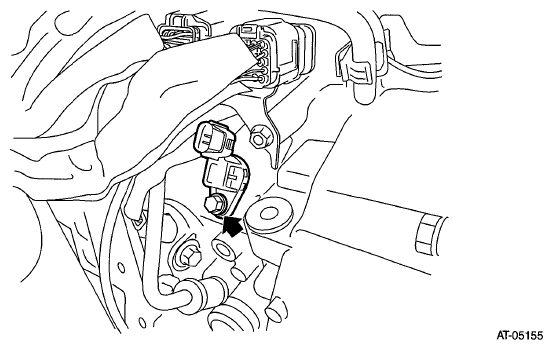

    Fig 1: Locating Primary Speed Sensor Mounting Bolt
    G06654440Courtesy of SUBARU OF AMERICA, INC.
