Rear Drive Shaft: Assembly

  1. Using the ST, install the ball bearing.
    NOTE:
    • Use a new ball bearing.
    • Apply CVTF to press-fitting surface of ball bearing.

    ST 399513600 INSTALLER

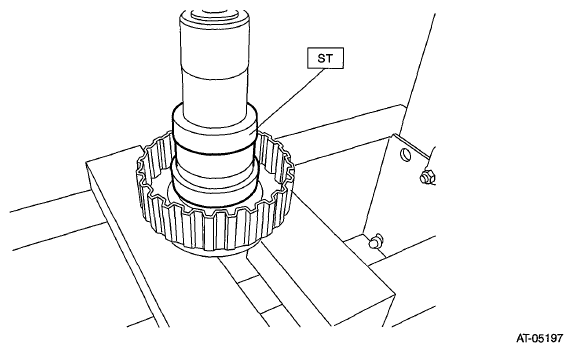

    Fig 1: Identifying Ball Bearing With Installer
    G06654506Courtesy of SUBARU OF AMERICA, INC.
