Rear Drive Shaft: Installation

Select the thrust needle bearing. Refer to , ADJUSTMENT , Rear Drive Shaft.
Install the selected thrust needle bearing to transfer clutch assembly.
NOTE: Install the thrust needle bearing in the correct direction.

Fig 1: Identifying Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Install the rear drive shaft.

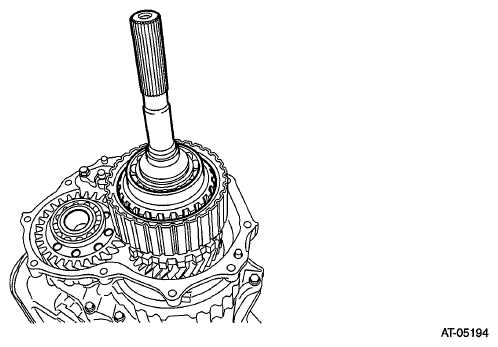

Fig 2: Identifying Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case. Refer to , INSTALLATION , Extension Case.
Install the transmission assembly to the vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
