Reduction Driven Gear: Assembly

Using the ST, install the ball bearing to bearing retainer.
ST 398177700 INSTALLER
NOTE:
- Use a new ball bearing.
- Make sure to install the ball bearing in the right direction.
- Apply CVTF to the press-fitting area.

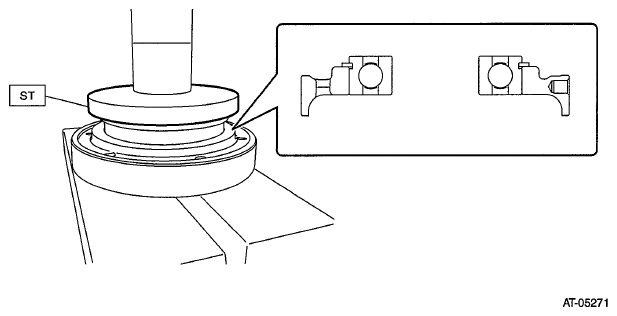

  Fig 1: Identifying Ball Bearing On Bearing Retainer
  Courtesy of SUBARU OF AMERICA, INC.
Using the ST, install the reduction driven gear.
ST 499277200 INSTALLER

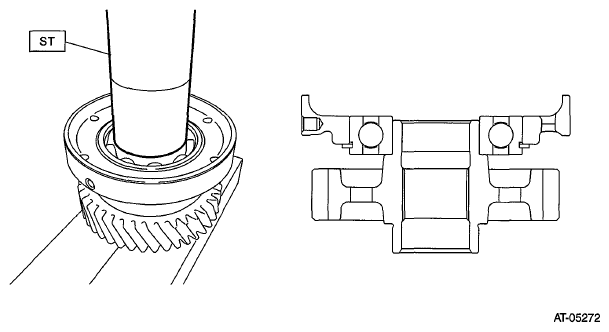

Fig 2: Identifying Reduction Driven Gear With Installer
Courtesy of SUBARU OF AMERICA, INC.
