Reduction Driven Gear: Disassembly

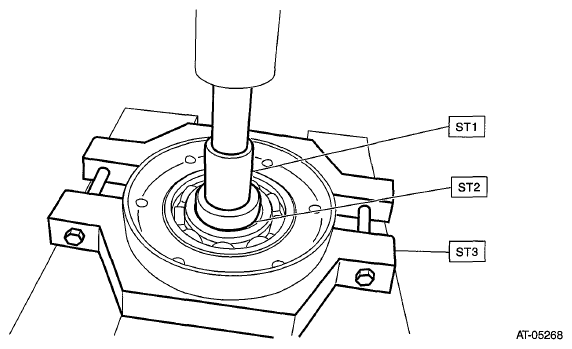

Remove the bearing retainer using ST1, ST2 and ST3.
ST1 899864100 REMOVER

ST2 398497701 SEAT

ST3 18767AA000 REMOVER

Fig 1: Identifying Bearing Retainer With Remover And Seat
Courtesy of SUBARU OF AMERICA, INC.

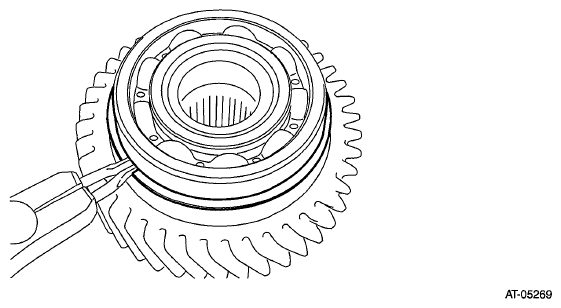

Remove the snap ring.

Fig 2: Identifying Clutch Assembly With Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

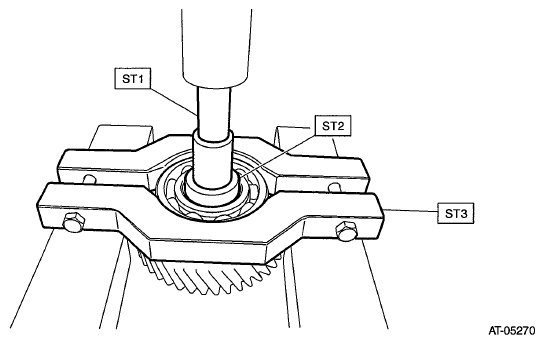

Remove the ball bearing using ST1, ST2 and ST3.
ST1 899864100 REMOVER

ST2 398497701 Seat

ST3 498077600 REMOVER

Fig 3: Identifying Ball Bearing With Remover And Seat
Courtesy of SUBARU OF AMERICA, INC.
