Reduction Driven Gear: Installation

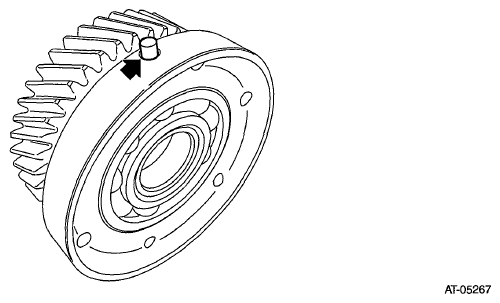

- Install the straight pin to reduction driven gear assembly.
Courtesy of SUBARU OF AMERICA, INC.

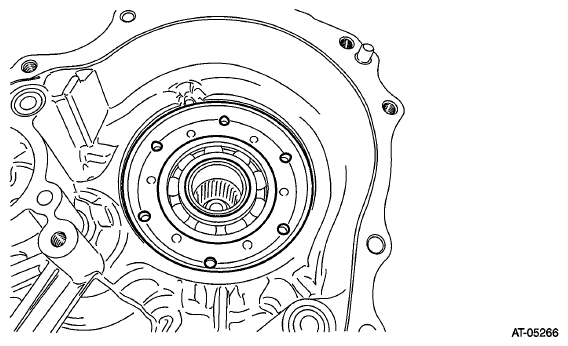

- Fit the straight pin portion to the recess portion of transmission case and install the reduction driven gear and install the snap ring.
Courtesy of SUBARU OF AMERICA, INC.
- Select the snap ring. Refer to
, ADJUSTMENT , Reduction Driven Gear.
- Replace with the selected snap ring.
NOTE:
If the clearance measured in Step 3) is within standard, the snap ring replacement is not necessary.
- Install the forward clutch assembly. Refer to
, INSTALLATION , Forward Clutch Assembly.
- Install the intermediate case. Refer to
, INSTALLATION , Intermediate Case.
- Install the transfer reduction driven gear assembly. Refer to
, INSTALLATION , Transfer Reduction Driven Gear.
- Install the transfer clutch assembly. Refer to
, INSTALLATION , Transfer Clutch.
- Install the rear drive shaft. Refer to
, INSTALLATION , Rear Drive Shaft.
- Install the extension case. Refer to
, INSTALLATION , Extension Case.
- Install the transmission to vehicle. Refer to
, INSTALLATION , Automatic Transmission Assembly.
