Reduction Driven Gear: Removal
- Remove the transmission from the vehicle. Refer to
, REMOVAL , Automatic Transmission Assembly.
- Remove the extension case. Refer to
, REMOVAL , Extension Case.
- Remove the rear drive shaft. Refer to
, REMOVAL , Rear Drive Shaft.
- Remove the transfer clutch assembly. Refer to
, REMOVAL , Transfer Clutch.
- Remove the transfer reduction driven gear assembly. Refer to
, REMOVAL , Transfer Reduction Driven Gear.
- Remove the intermediate case. Refer to
, REMOVAL , Intermediate Case.
- Remove the forward clutch assembly. Refer to
, REMOVAL , Forward Clutch Assembly.

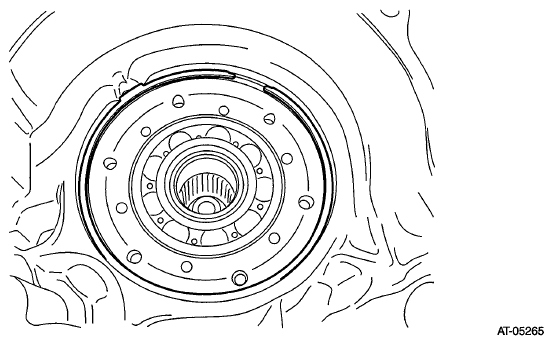

- Remove the snap ring.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the reduction driven gear assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the straight pin.
Courtesy of SUBARU OF AMERICA, INC.
