Reverse Brake Assembly: Disassembly

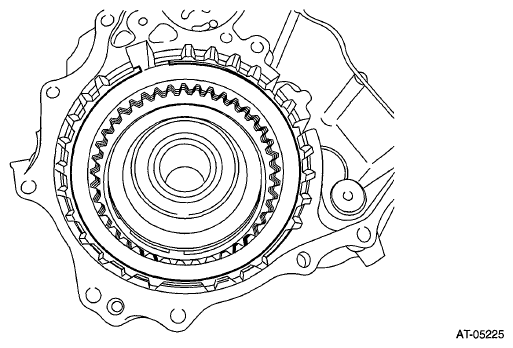

Remove the snap ring.
Remove the retaining plate, drive plate, driven plate and dish plate.

Fig 1: Identifying Retaining Plate, Drive Plate, Driven Plate And Dish Plate
Courtesy of SUBARU OF AMERICA, INC.
Set the ST1, ST2 and ST3 to intermediate case.
ST1 18762AA000 COMPRESSOR SPECIAL TOOL

ST2 18763AA000 COMPRESSOR SHAFT

ST3 18765AA000 COMPRESSOR SUPPORT

Fig 2: Identifying Compressor Special Tool, Compressor Shaft And Compressor Support With Intermediate Case
Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the set ST to remove the snap ring.

Fig 3: Identifying Return Spring With ST
Courtesy of SUBARU OF AMERICA, INC.

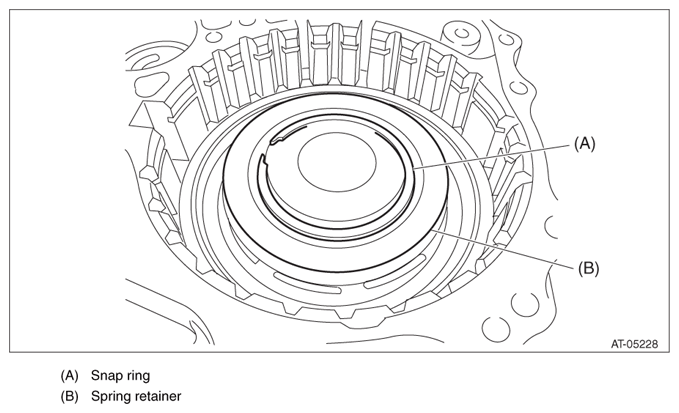

Using the ST, remove the snap ring and spring retainer.

Fig 4: Identifying Snap Ring And Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Fig 5: Identifying Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse brake piston by blowing compressed air intermittently from intermediate case hole.

Fig 6: Locating Intermediate Case Hole
Courtesy of SUBARU OF AMERICA, INC.
