Secondary Pressure Sensor: Removal
CAUTION:
- Be sure to prevent water or oil from contacting the connector terminal of secondary pressure sensor. If adhesion occurs, replace with a new part.
- When removing secondary pressure sensor, CVTF may let out. If CVTF has leaked, adjust the CVTF level after installing the secondary pressure sensor.
- Remove the air intake boot assembly. Refer to AIR INTAKE BOOT IN(H4SO)-8, REMOVAL, Air Intake Boot.
- Remove the secondary pressure sensor connector.

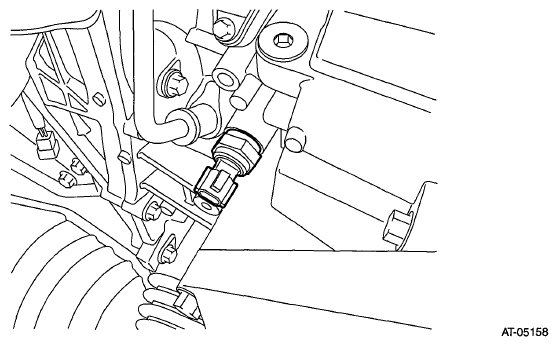

- Remove the secondary pressure sensor.NOTE: Use Ko-ken 3/8 12-point 27 mm (manufacturer product No. 3305M-27) deep socket.
