Secondary Speed Sensor: Removal

CAUTION: Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
  1. Remove the transmission from the vehicle. Refer to , REMOVAL , Automatic Transmission Assembly.
  2. Remove the transmission cover on the transmission upper side.

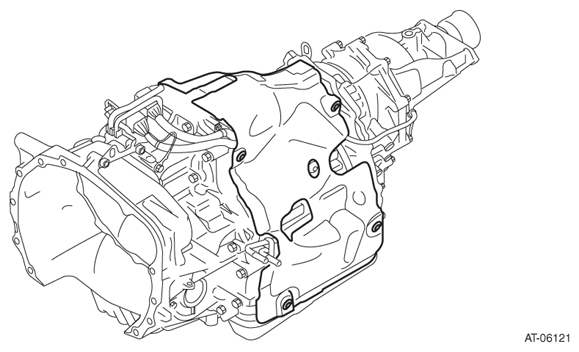

    Fig 1: Identifying Transmission Cover On Transmission Upper Side
    G07913389Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the harness connector from secondary speed sensor.
  4. Remove the secondary speed sensor.

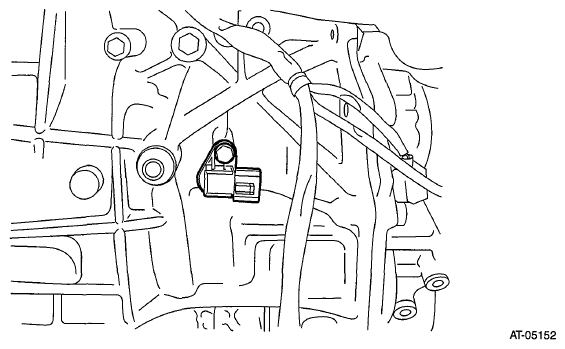

    Fig 2: Identifying Secondary Speed Sensor
    G06654437Courtesy of SUBARU OF AMERICA, INC.
