Transfer Clutch: Installation

Apply vaseline to the seal ring and attach it to the seal ring groove of transfer clutch assembly.
NOTE:
- Use a new seal ring.
- When installing the seal ring, do not expand the seal ring too much.

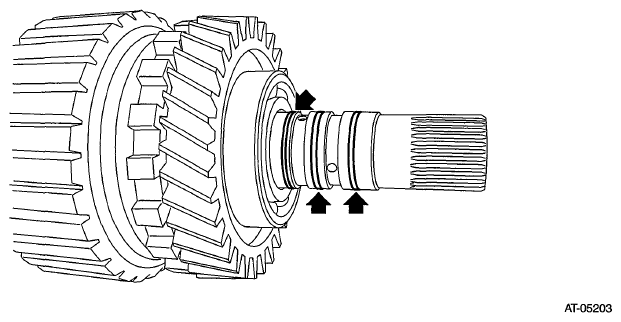

  Fig 1: Locating Seal Ring On Transfer Clutch Assembly (View 2 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.
Install the transfer clutch assembly.

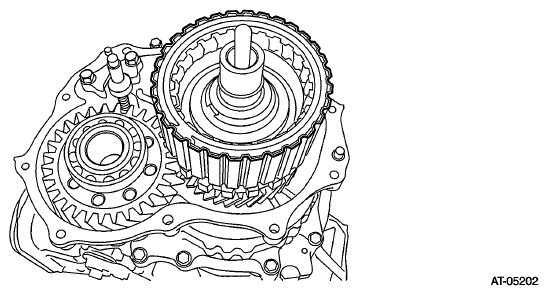

Fig 2: Identifying Transfer Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Select the thrust needle bearing. Refer to , ADJUSTMENT , Rear Drive Shaft.
Install the selected thrust needle bearing and needle bearing to transfer clutch assembly.
NOTE: Install the thrust needle bearing in the correct direction.

Fig 3: Identifying Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Install the rear drive shaft. Refer to , INSTALLATION , Rear Drive Shaft.
Install the extension case. Refer to , INSTALLATION , Extension Case.
Install the transmission assembly to the vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
