Transfer Reduction Driven Gear: Disassembly

Using the ST, remove the ball bearing (large) from transfer reduction driven gear.
ST1 899864100 REMOVER

ST2 398497701 SEAT

ST3 498077600 REMOVER

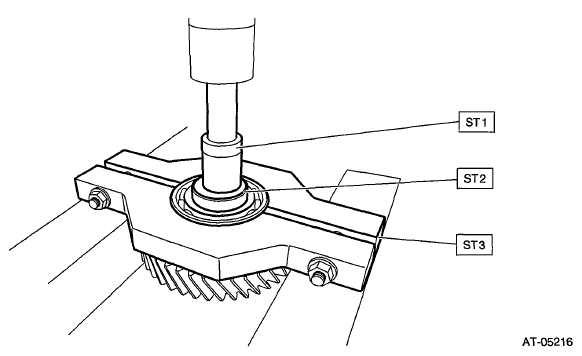

Fig 1: Identifying Ball Bearing (Large) With Transfer Reduction Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the ball bearing (small) from transfer reduction driven gear.
ST1 899864100 REMOVER

ST2 398497701 SEAT

ST3 18720AA000 REMOVER

Fig 2: Identifying Ball Bearing (Small) With Transfer Reduction Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
