Transmission Control Device: Installation

Install the detent spring to the transmission case.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

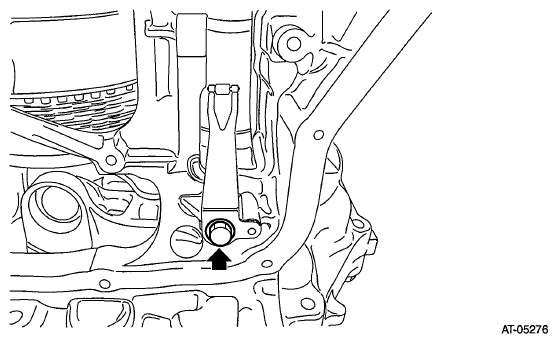

Fig 1: Identifying Detent Spring (View 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Install the manual plate, parking rod, range select lever and bolt.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

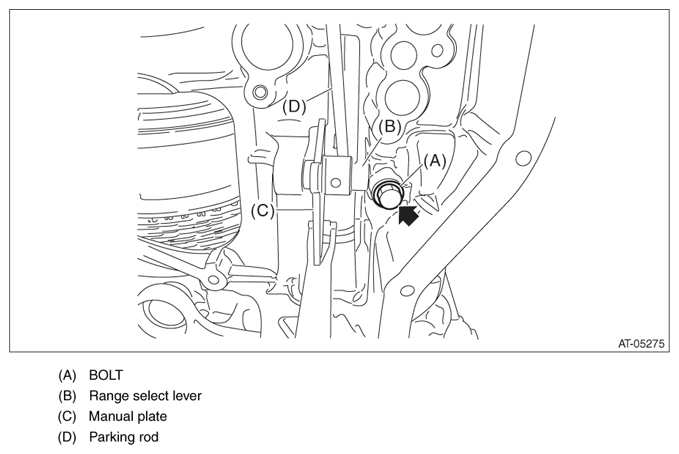

Fig 2: Identifying Range Select Lever, Manual Plate, Parking Rod And Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the spring pin.
NOTE: Use new spring pin.

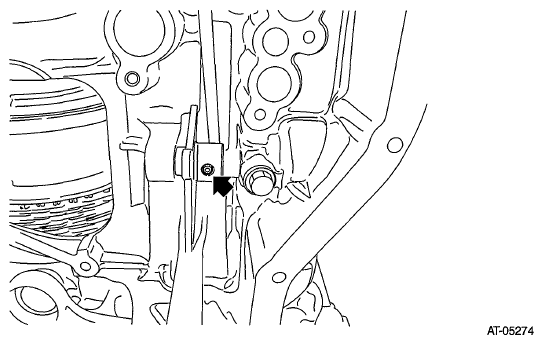

Fig 3: Identifying Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the inhibitor switch. Refer to , INHIBITOR SWITCH .
Adjust the inhibitor switch. Refer to , INHIBITOR SWITCH .
Install the control valve body and oil pan. Refer to , INSTALLATION , Control Valve Body.
Install the transmission assembly to the vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
