Transmission Harness: Installation
Install in the reverse order of removal.
NOTE:
- Use new O-rings.
- Do not impact or bend the transmission harness because it has the oil temperature sensor inside.

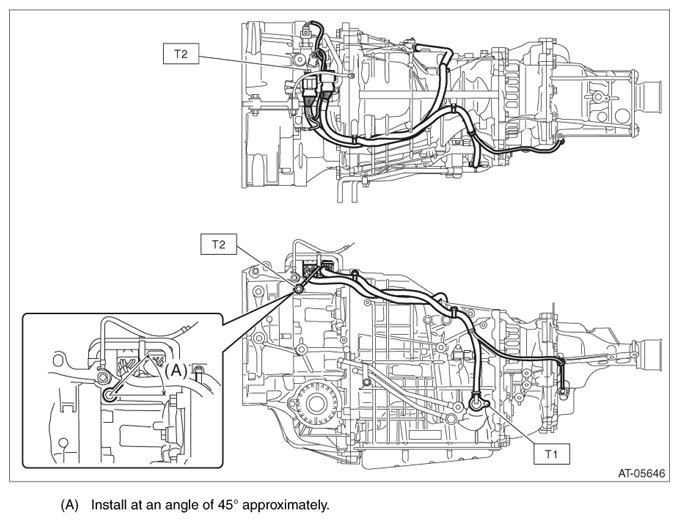

- Install the transmission ground terminal at an angle of 45° approximately.
Tightening torque:
T1: 5 N.m (0.5 kgf-m, 3.7 ft-lb)
T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)
