Transmission Harness: Removal
- Remove the transmission from the vehicle. Refer to
, REMOVAL , Automatic Transmission Assembly.
- Prepare for overhaul. Refer to
, PREPARATION FOR OVERHAUL .

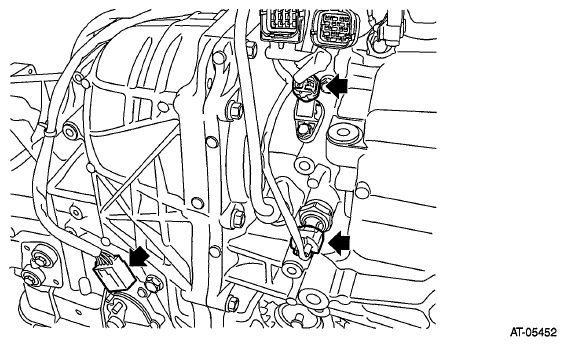

- Remove the transmission harness ground terminal and remove the harness connectors from front wheel speed sensor and secondary speed sensor.
Courtesy of SUBARU OF AMERICA, INC.

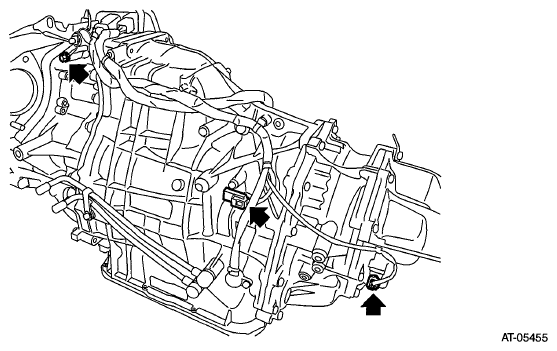

- Remove the harness connectors from inhibitor switch, primary speed sensor and secondary pressure sensor.
Courtesy of SUBARU OF AMERICA, INC.

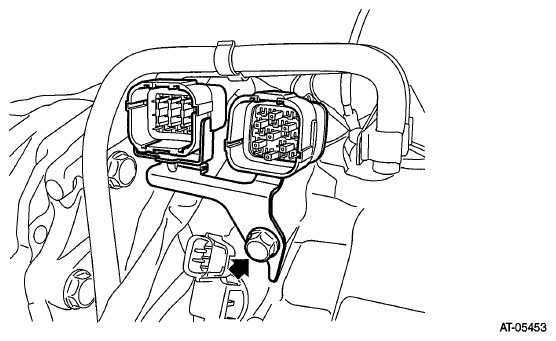

- Remove the transmission harness stay.
Courtesy of SUBARU OF AMERICA, INC.
- Remove transmission harness connector and inhibitor harness connector from harness stay.
- Remove the control valve body. Refer to
, REMOVAL , Control Valve Body.

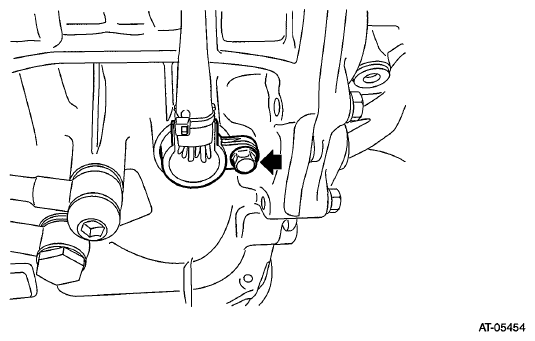

- Remove the mounting bolt to pull out the bushing of transmission harness from transmission case round hole.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the harness clip from transmission assembly.
