Transmission Mounting System: Installation

Attach the rear cushion rubber to the transmission.
Tightening torque:

40 N.m (4.1 kgf-m, 29.5 ft-lb)

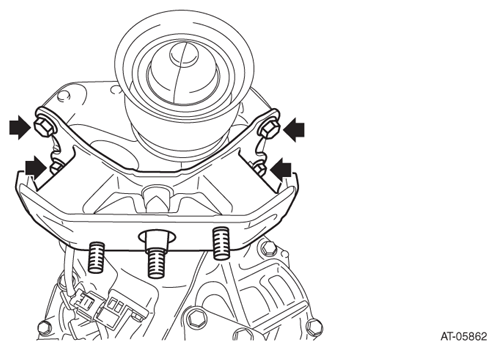

Fig 1: Locating Rear Cushion Rubber Mounting Bolts (View 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Install the crossmember.
Tightening torque:

T1: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

T2: 75 N.m (7.6 kgf-m, 55.3 ft-lb)

Fig 2: Identifying Crossmember Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission jack.
Install the heat shield cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 3: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. Refer to CENTER EXHAUST PIPE EX(H4SO)-7, INSTALLATION, Center Exhaust Pipe.
Connect the battery ground terminal.
