Check Each Connection: Notes

Press the << Audio >> key to display the AUDIO OFF screen.
Touch the screen in the order of (1) to (6) shown in the figure.

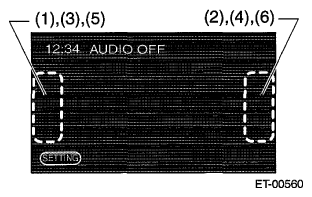

Fig 1: Screen Display - Audio Off
Courtesy of SUBARU OF AMERICA, INC.
The display will switch to the Dealer Diag Menu screen.

Fig 2: Screen Display - Dealer Diag Menu
Courtesy of SUBARU OF AMERICA, INC.
