Speedometer Test

  1. Rear wheel free roller system
    1. Set the free roller on the floor of rear wheel side securely according to the wheel base and rear tread of the vehicle.
    2. Let the vehicle ride on the tester and free roller gently.
      CAUTION: Fix the vehicle using a pulling metal (chain or wire) to the front and rear towing hooks or tie-down hook to prevent the lateral runout of front wheels and springing out of vehicle.

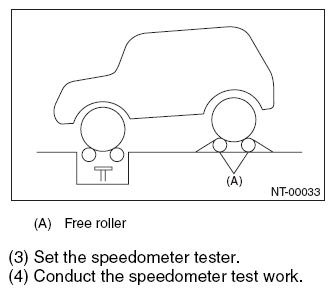

      Fig 1: Setting Free Roller On Floor Of Rear Wheel Side
      G07911327Courtesy of SUBARU OF AMERICA, INC.
    3. Set the speedometer tester
    4. Conduct the speedometer test work.
      CAUTION: Do not operate the clutch quickly and do not accelerate or decelerate suddenly during work.
  2. Rear wheel jack-up system
    1. Set the vehicle on speedometer tester.
      CAUTION: Fix the vehicle using a pulling metal (chain or wire) to the front and rear towing hooks or tie-down hook to prevent the lateral runout of front wheels and springing out of vehicle.
    2. Jack up the rear wheels and set the rigid racks to the specified locations of side sill.

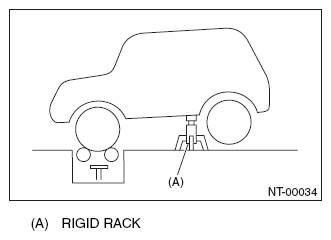

      Fig 2: Identifying Rear Wheel Jack-Up System
      G07911328Courtesy of SUBARU OF AMERICA, INC.
    3. Conduct the speedometer test work.
      CAUTION: Do not operate the clutch quickly and do not accelerate or decelerate suddenly during work.
