Front Door Glass: Removal

Remove the front door trim. Refer to DOOR TRIM .
Remove the sealing cover.
CAUTION:
- Carefully remove the butyl tape. Excessive force will easily break the cover.
- If cover gets broken, replace it with a new part.
Fig 1: Removing Sealing Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the inner pad.
Attach the battery ground cable and power window switch and turn the ignition to ON.
Remove the front door glass.
1. Operate the power window switch to move the front door glass to the position where the mounting bolts can be seen.
2. Remove the bolt.

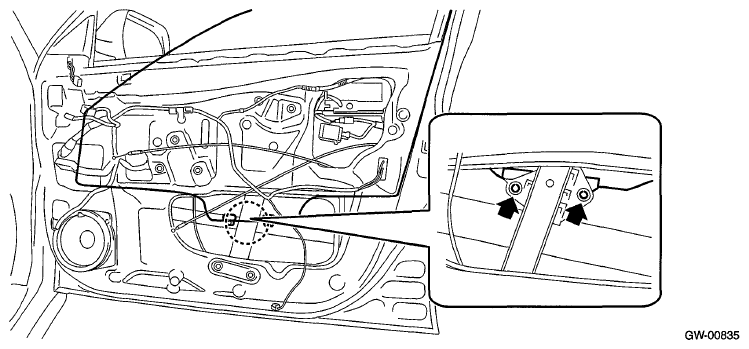

  Fig 2: Locating Power Window Switch Bolt
  Courtesy of SUBARU OF AMERICA, INC.
3. While tilting the glass, remove the windshield glass.

CAUTION: Avoid impact and damage to the glass.

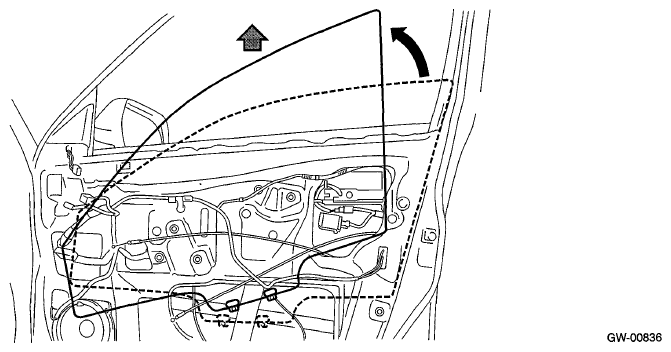

Fig 3: Removing Windshield Glass

Courtesy of SUBARU OF AMERICA, INC.
