Front Regulator and Motor Assembly: Inspection

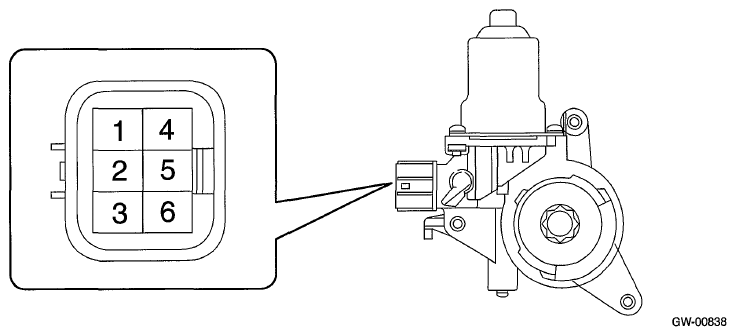

- Disconnect the motor connector.
- Apply battery voltage between the motor connector terminals and check the motor operation.
Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Inspection conditions Specification 1 (+) - 4 (-) Apply battery voltage between terminals. Increase 4 (+) - 1 (-) Apply battery voltage between terminals. Decrease - If the inspection results in improper operation, replace the front regulator and motor assembly.
