Fixed Glass (Outback Model)

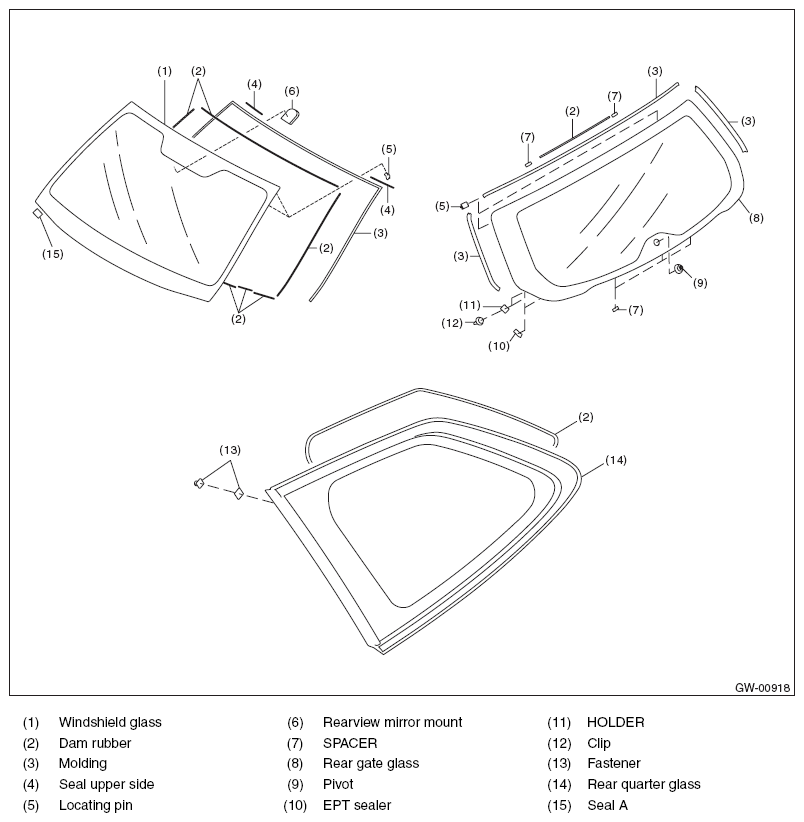

Fig 1: Identifying Glass, Window And Mirror Components (Outback Model)
G07916320Courtesy of SUBARU OF AMERICA, INC.
