Model Without Electric Retractable Mirror

CAUTION:

When removing the mirror, be careful not to damage the back surface of mirror with a flat tip screwdriver.
When installing the mirror, insert the connector and clip securely.

Operate the remote control mirror switch to face the mirror surface upward.
Disconnect the ground cable from battery.
Remove the outer mirror.
1. Disconnect the clips using a flat tip screwdriver.

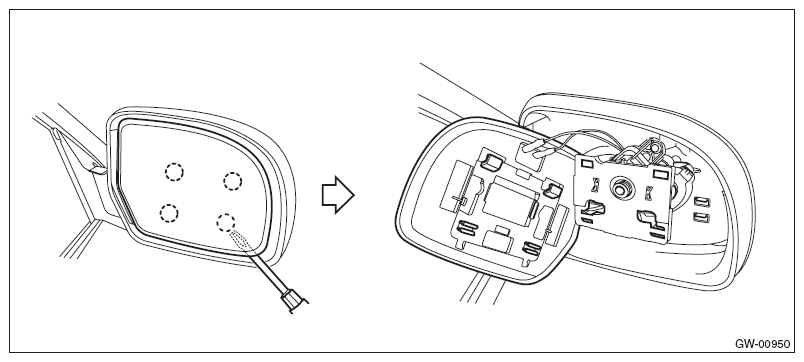

  Fig 1: Disconnecting Outer Mirror Clips Using Flat Tip Screwdriver
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the mirror heater connector. (Model with mirror heater)

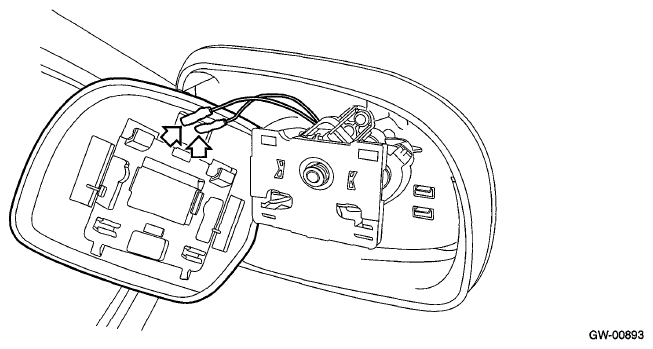

  Fig 2: Identifying Mirror Heater Connector (Model With Mirror Heater)
  Courtesy of SUBARU OF AMERICA, INC.
Install the outer mirror in the reverse order of removal.
