Power Window Control Switch: Inspection: Sub-Switch

Remove the sub switch.

Check the resistance between sub switch terminals.

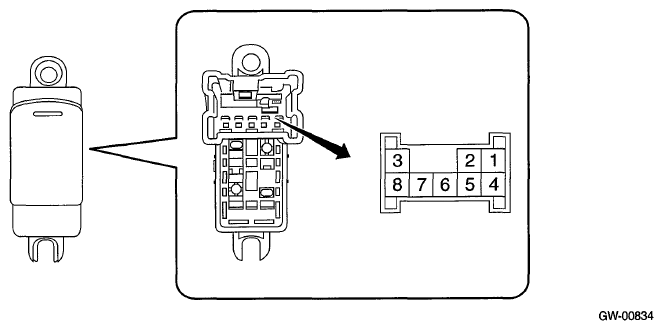

Fig 1: Checking Resistance Between Sub Switch Terminals

G06653696

Courtesy of SUBARU OF AMERICA, INC.

	Terminal No.	Inspection conditions	Specification
Passenger's seat, rear	4 - 5 6 - 7	UP	Less than 1 Ω
	7 - 4 8 - 4	OFF	1 MΩ or more
	5 - 8 6 - 7	OFF	Less than 1 Ω
	4 - 6 5 - 8	DOWN	Less than 1 Ω

Replace the sub switch if the inspection result is not within the standard value.
