Power Window Control Switch: Removal: Sub-Switch

  1. Remove the rear door trim. Refer to DOOR TRIM .
  2. Remove the power window switch panel.
    CAUTION: Do not damage the door trim with the switch panel.
    1. Insert a sheet of protective paper (a) between switch panel and door trim.
    2. Remove the screws and disconnect the connector.
    3. Disconnect the claws and then remove the power window switch panel.

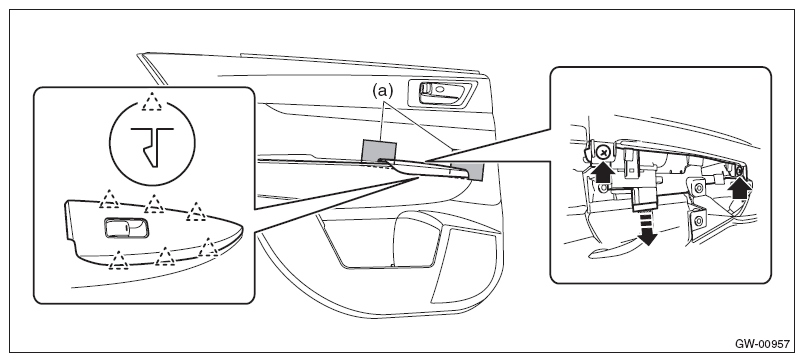

      Fig 1: Inserting Sheet Of Protective Paper Between Switch Panel And Door Trim
      G07916330Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the claws and then remove the power window sub-switch.

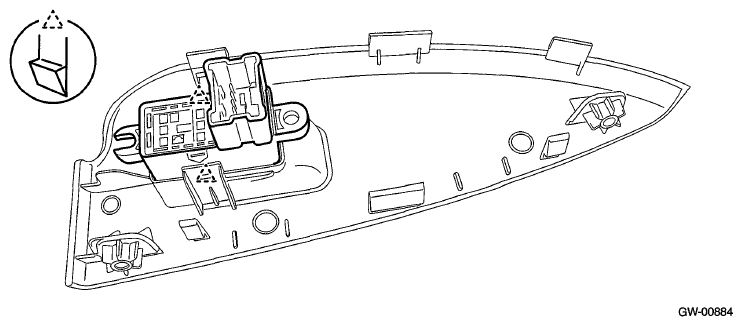

    Fig 2: Identifying Power Window Sub Switch And Claws
    G06653693Courtesy of SUBARU OF AMERICA, INC.
