Rear Gate Glass: Installation

NOTE: When applying adhesive and installing the dam rubber and molding, refer to Ag printing as a mark.

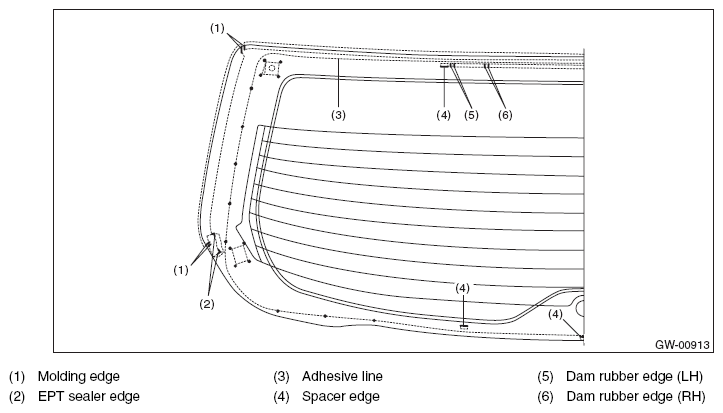

Fig 1: Identifying Molding Edge, Adhesive Line, Dam Rubber Edge, EPT Sealer Edge And Spacer Edge

Courtesy of SUBARU OF AMERICA, INC.

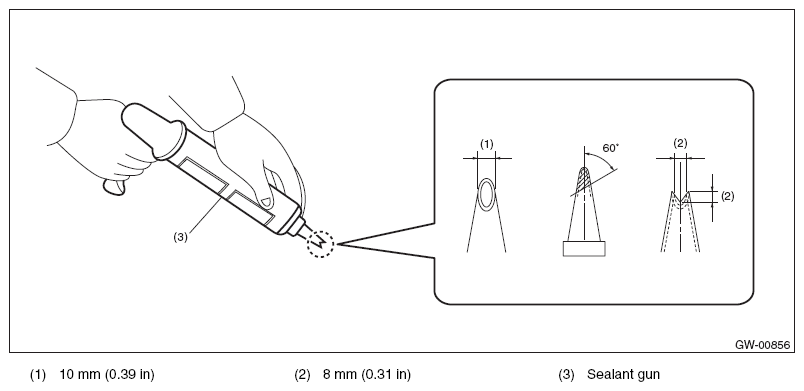

Fabricate the cartridge nozzle tip as shown and set the sealant gun with the adhesive.

Fig 2: Fabricating Cartridge Nozzle Tip
Courtesy of SUBARU OF AMERICA, INC.
Prepare and clean the adhesion surfaces of the glass and body using the same procedures as for the windshield glass. Refer to , INSTALLATION , Windshield Glass.

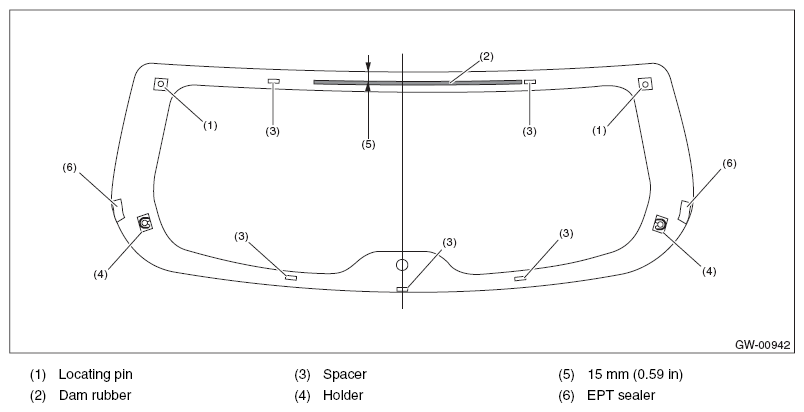

Attach the dam rubber to the glass.

Fig 3: Identifying Dam Rubber Installation Dimension
Courtesy of SUBARU OF AMERICA, INC.

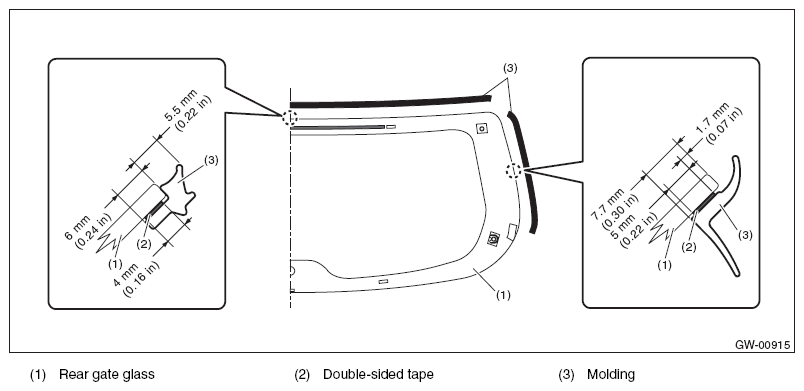

Install the molding to the glass.
CAUTION: Be careful to attach the molding so that the molding has no loose or undulating part.

Fig 4: Identifying Glass Molding Installation Dimension
Courtesy of SUBARU OF AMERICA, INC.
Install the rear gate glass.
1. Apply the primer to the adhesive surface of glass side and body side using sponge.
2. Apply adhesive to the glass end back surface.

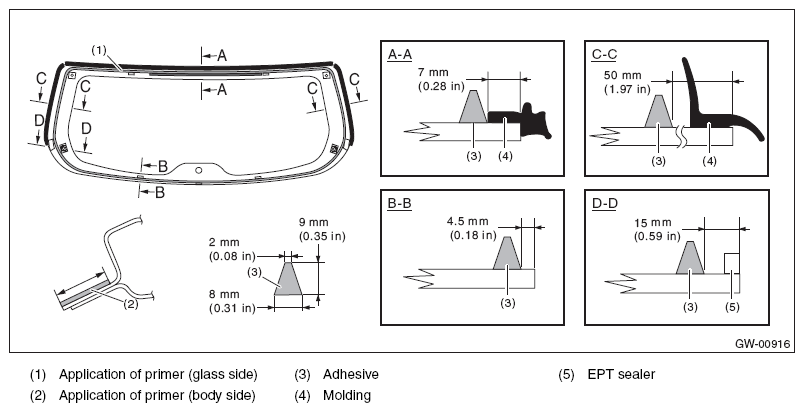

  Fig 5: Identifying Adhesive Applying Dimension On Glass End Back Surface
  Courtesy of SUBARU OF AMERICA, INC.
3. Attach the clip to the rear gate glass holder.
4. Insert the glass locating pins in the rear gate panel holes and install the rear gate glass.
5. Lightly press the entire perimeter of rear gate glass for tight fit.
6. Make flush the adhesive surface jutted out using spatula.
After completion of all work, allow the vehicle to stand for about 24 hours.
NOTE:
- When door is opened/closed after glass is bonded, always lower the door glass first, and then open/close it carefully.
- Move the vehicle slowly.
- For minimum drying time and vehicle standing time before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
After curing of adhesive, pour the water on external surface of vehicle to check that there are no water leaks.
NOTE: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
Connect the rear defogger connector and radio antenna connector.
Install the rear wiper motor. Refer to REAR WIPER MOTOR .
Install the rear gate garnish. Refer to REAR GATE GARNISH .
Install the rear gate trim. Refer to REAR GATE TRIM .
