Rear Window Defogger System: Repair

  1. Clean the broken portion with alcohol or white gasoline.
  2. Mask both side of wire with masking tape.
  3. Apply the conductive silver composition to the broken portion.

    Conductive silver composition:

    by Permatex

    QUICK GRID

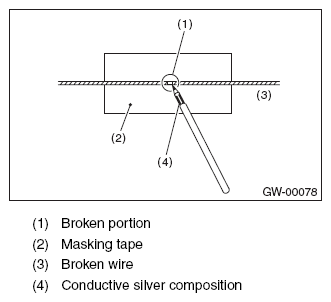

    Fig 1: Applying Conductive Silver Composition To Broken Portion
    G07916384Courtesy of SUBARU OF AMERICA, INC.
  4. Dry using a dryer after applying the composition.
  5. After repair, check the wire.
