Compass zone map

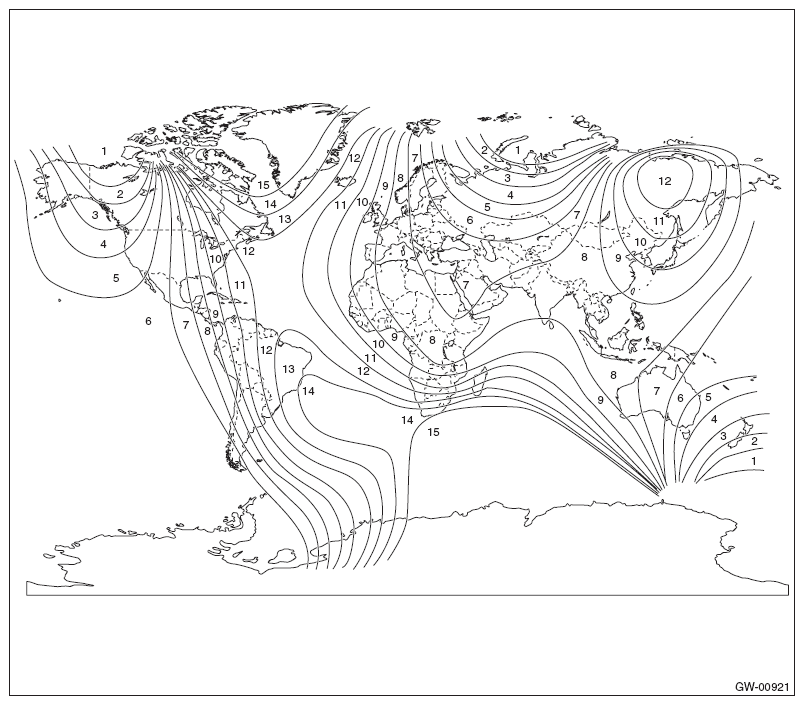

Fig 1: Compass Zone Map

Courtesy of SUBARU OF AMERICA, INC.

2) Turn the ignition switch to ON.
3) Hold down the multi-function button (a) for three to six seconds. Once zone setting mode starts, the zone number that is already set is displayed on the screen (b).

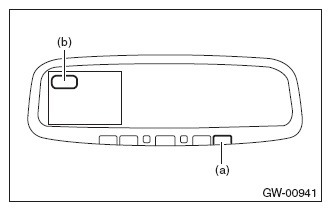

Fig 2: Identifying Multi-Function Button And Screen
Courtesy of SUBARU OF AMERICA, INC.
4) Push the multi-function button repeatedly until the zone number you want to set is displayed.
NOTE: If you leave the multi-function button for three seconds, the zone setting mode is completed.
