Rearview Mirror: Removal

CAUTION: Be careful not to damage the mirror surface and windshield glass.
  1. Remove the TORX® bolt, and then slide the rear view mirror to remove.

    Preparation tool: TORX® T20

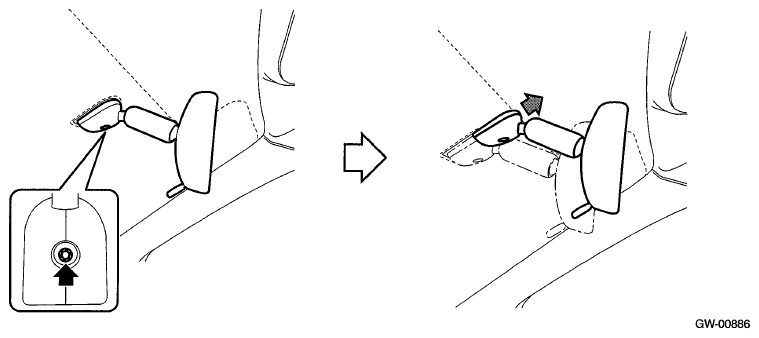

    Fig 1: Removing Rear View Mirror
    G06653749Courtesy of SUBARU OF AMERICA, INC.
  2. When the mirror mount is damaged, use something like piano wire or a spatula to remove.
