Remote Control Mirror Switch: Inspection

Preparation tool: Circuit tester

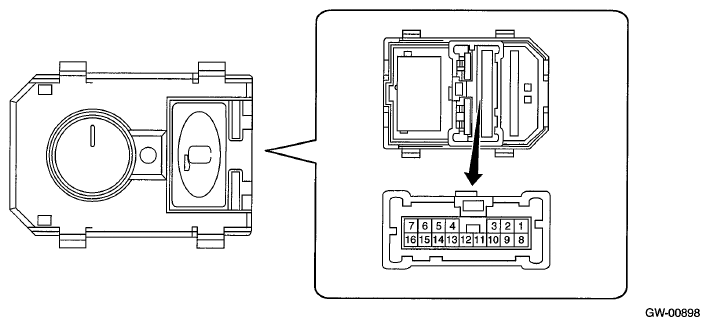

Fig 1: Identifying Remote Control Mirror Switch Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

• Changeover switch RH

  Terminal No.	Inspection conditions	Specification
  -	OFF	1 MΩ or more
  1 - 12 11 - 7	UP	Less than 1 Ω
  1 - 11 12 - 7	DOWN	Less than 1 Ω
  1 - 9 12 - 7	LEFT	Less than 1 Ω
  1 - 12 9 - 7	RIGHT	Less than 1 Ω

• Changeover switch LH

  Terminal No.	Inspection conditions	Specification
  -	OFF	1 MΩ or more
  1 - 14 10 - 7	UP	Less than 1 Ω
  1 - 10 14 - 7	DOWN	Less than 1 Ω
  1 - 8 14 - 7	LEFT	Less than 1 Ω
  1 - 14 8 - 7	RIGHT	Less than 1 Ω

• Folding switch (model with electric retractable mirror)

  Terminal No.	Inspection conditions	Specification
  -	OFF	1 MΩ or more
  1 - 5 2 - 7	Folding (LH)	Less than 1 Ω
  1 - 6 3 - 7	Folding (RH)	Less than 1 Ω
  1 - 2 5 - 7	Unfolding (LH)	Less than 1 Ω
  1 - 3 6 - 7	Unfolding (RH)	Less than 1 Ω
