Remote Control Mirror Switch: Removal

  1. Remove the instrument panel lower cover. Refer to INSTRUMENT PANEL LOWER COVER .
  2. Disconnect the claws and then remove the remote control mirror switch.

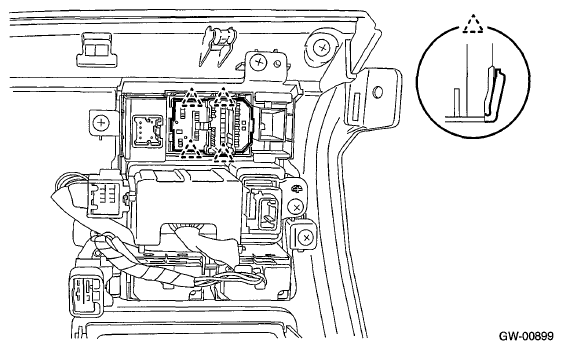

    Fig 1: Identifying Remote Control Mirror Switch And Claws
    G06653715Courtesy of SUBARU OF AMERICA, INC.
