Relay and Fuse: Location

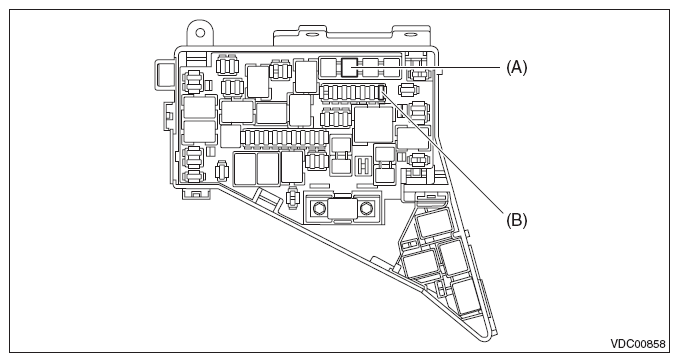

Fig 1: Relay And Fuse Location
G07914187Courtesy of SUBARU OF AMERICA, INC.
Main fuse box Fuse 40 A (VDC CM & H/U) (A)
Fuse 30 A (VDC CM & H/U) (B)
NOTE: For other related fuses, refer to the wiring diagram. Refer to SYSTEM WIRING DIAGRAMS or SYSTEM WIRING DIAGRAMS .
