VDC Control Module and Hydraulic Control Unit (VDCCM & H/U): Inspection: Notes

Check the identification label (a) of the VDC control unit & hydraulic control unit (VDCCM & H/U).
NOTE: For the identification label, refer to "SPECIFICATION" in "General Description". Refer to , SPECIFICATION , General Description.

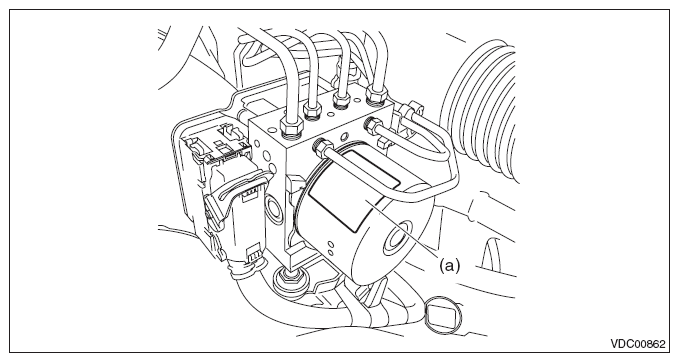

Fig 1: Identifying Identification Label Of VDC Control Unit & Hydraulic Control Unit (VDCCM&H/U)
Courtesy of SUBARU OF AMERICA, INC.
Check the condition of connection and settlement of connector, and correct or replace if defective.
