VDC OFF Switch: Inspection

  1. Disconnect the VDC OFF switch connector.
  2. Check the resistance between the VDC OFF switch terminals.

    Preparation tool: Circuit tester

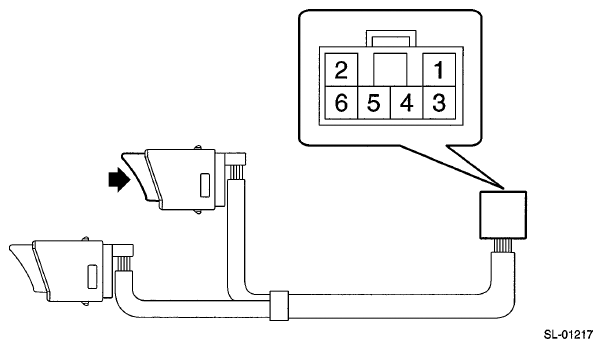

    Fig 1: Checking Resistance Between VDC OFF Switch Terminals
    G06653910Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    1 - 3 Switch OFF 1 MΩ or more
    Switch ON Less than 1 Ω
  3. Replace the VDC OFF switch if the inspection result is not within the standard value.
