VDC OFF Switch: Removal

NOTE: The trunk opener switch is integrated with the VDC OFF switch. (Sedan model)
  1. Remove the instrument panel lower cover. Refer to INSTRUMENT PANEL LOWER COVER .
  2. Release the claws and remove the VDC OFF switch.

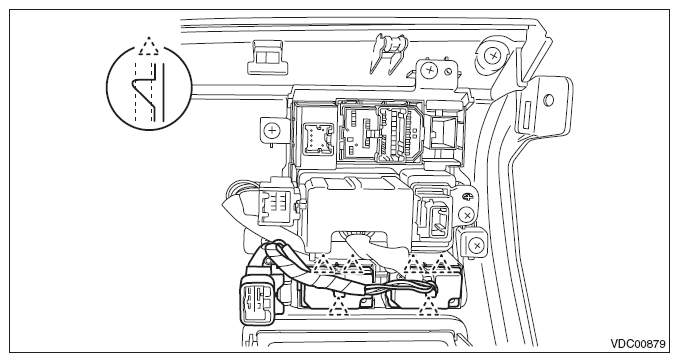

    Fig 1: Identifying VDC OFF Switch And Claws
    G07914211Courtesy of SUBARU OF AMERICA, INC.
