Generator Bracket

2.5 L model

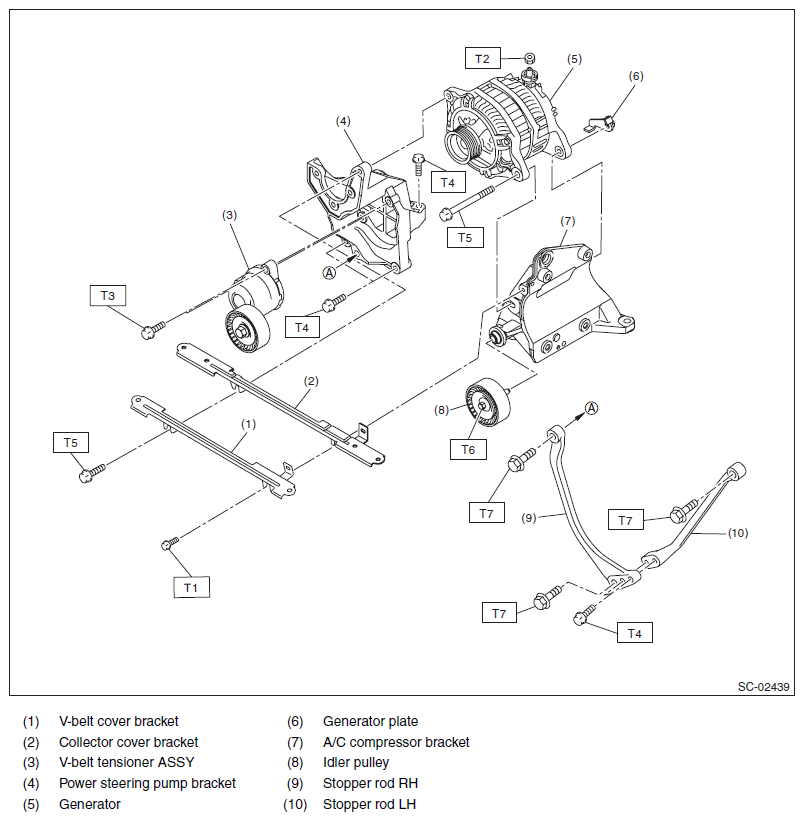

Fig 1: Exploded View Of Generator Bracket (2.5 L Model)

G07910039

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 16 (1.6, 11.8)

T3: 20 (2.0, 14.8)

T4: 22 (2.2, 16.2)

T5: 25 (2.5, 18.4)

T6: 33 (3.4, 24.3)

T7: 36 (3.7, 26.6)

3.6 L model

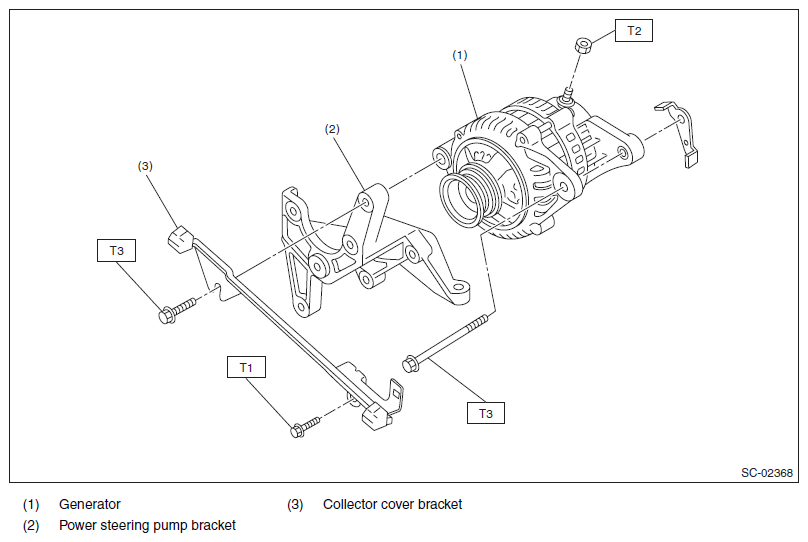

Fig 2: Exploded View Of Starting/Charging Systems (3.6 L Model)

G07910040

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 16 (1.6, 11.8)

T3: 25 (2.5, 18.4)
