2.5 L Model

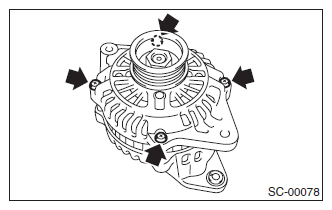

Remove the four through bolts.

Fig 1: Locating Four Through Bolts
Courtesy of SUBARU OF AMERICA, INC.

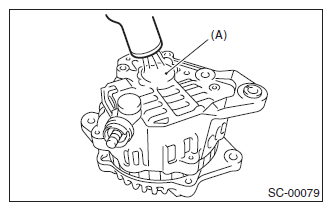

Use a drier to heat the rear cover (A) portion to 50°C (122°F).

Fig 2: Identifying Rear Cover
Courtesy of SUBARU OF AMERICA, INC.

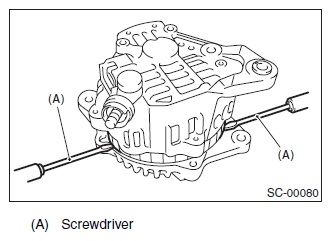

Insert the end of a flat tip screwdriver into the gap between stator core and front cover. Pry them apart to disassemble.

Fig 3: Identifying Screwdriver Inserted Into Gap Between Stator Core And Front Cover
Courtesy of SUBARU OF AMERICA, INC.

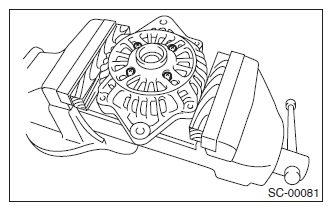

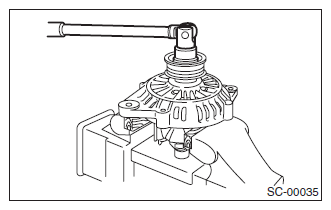

Using a vise, support the rotor and remove the pulley bolt.

Fig 4: Identifying Rotor And Pulley Bolt
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: When holding the rotor with a vise, place aluminum plates or wooden pieces on the vise jaws to prevent rotor from damage.

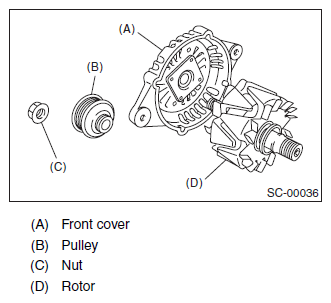

Fig 5: Identifying Front Cover, Pulley, Nut And Rotor
Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to remove the ball bearings.
1. Remove the bolt, and then detach the bearing retainer.

  Fig 6: Identifying Bearing Retainer
  Courtesy of SUBARU OF AMERICA, INC.
2. Firmly attach an appropriate tool (such as a correct size socket wrench) to the bearing inner race.

  Fig 7: Identifying Bearing Inner Race
  Courtesy of SUBARU OF AMERICA, INC.

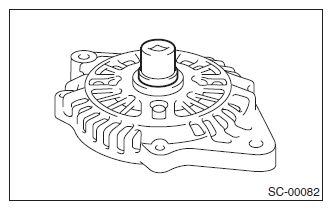

3. Use the press to push the ball bearings out from the front cover.

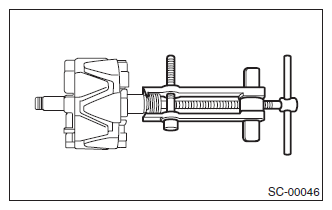

Using the bearing puller, remove the bearings from the rotor.

Fig 8: Identifying Bearings With Rotor
Courtesy of SUBARU OF AMERICA, INC.

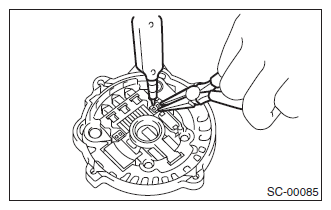

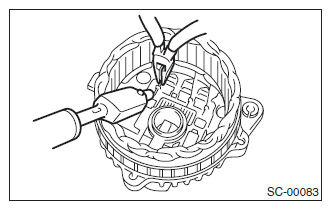

Disconnect the connection between the rectifier and stator coil, then remove the stator coil.
CAUTION: The rectifier is easily damaged by heat. Do not allow a 180 - 270 W soldering iron to contact the terminals for 5 seconds or more at a time.

Fig 9: Identifying Rectifier And Stator Coil
Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to remove the IC regulator.

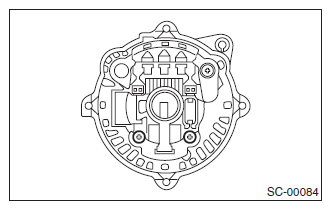

1. Remove the screws which secure the IC regulator to the rear cover.

  Fig 10: Identifying IC Regulator Mounting Screws
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the connection between the IC regulator and rectifier, then remove the IC regulator.
Fig 11: Disconnecting Connection Between IC Regulator And Rectifier
Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to remove the brush.

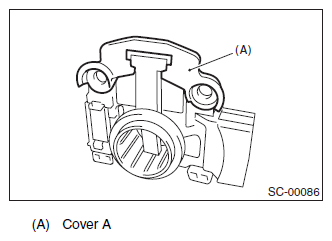

Remove the cover A.

Fig 12: Identifying Brush Cover (First)
Courtesy of SUBARU OF AMERICA, INC.

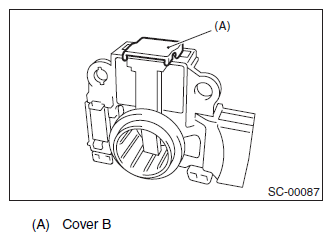

Remove the cover B.

Fig 13: Identifying Brush Cover (Second)
Courtesy of SUBARU OF AMERICA, INC.

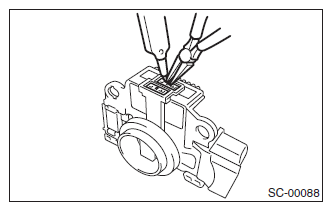

Disconnect the connection and remove the brush.

Fig 14: Identifying Brush
Courtesy of SUBARU OF AMERICA, INC.
Remove the rectifier as follows.

Remove the bolts which secure the rectifier.

Fig 15: Locating Rectifier Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the cover on terminal B.

Fig 16: Locating Terminal Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts of terminal B, then remove the rectifier.

Fig 17: Locating Terminal Mounting Nut

Courtesy of SUBARU OF AMERICA, INC.
